Double-rail Hydraulic Freight Elevator

Double-track single-bar Hydraulic Cargo Lift

This hydraulic lifting platform is a powerful tool for loading and unloading goods, specifically designed for transporting materials between high and low floors and suitable for various indoor and outdoor scenarios. Constructed with thickened national standard steel and equipped with a high-power pure copper motor, it ensures smooth and easy lifting, safe and stable operation, and efficiently solves the needs of vertical cargo transportation.

1. Comprehensive safety protection: Equipped with explosion-proof valves, anti-fall cylinders, and anti-fall wire ropes for multiple protections, ensuring operational safety.

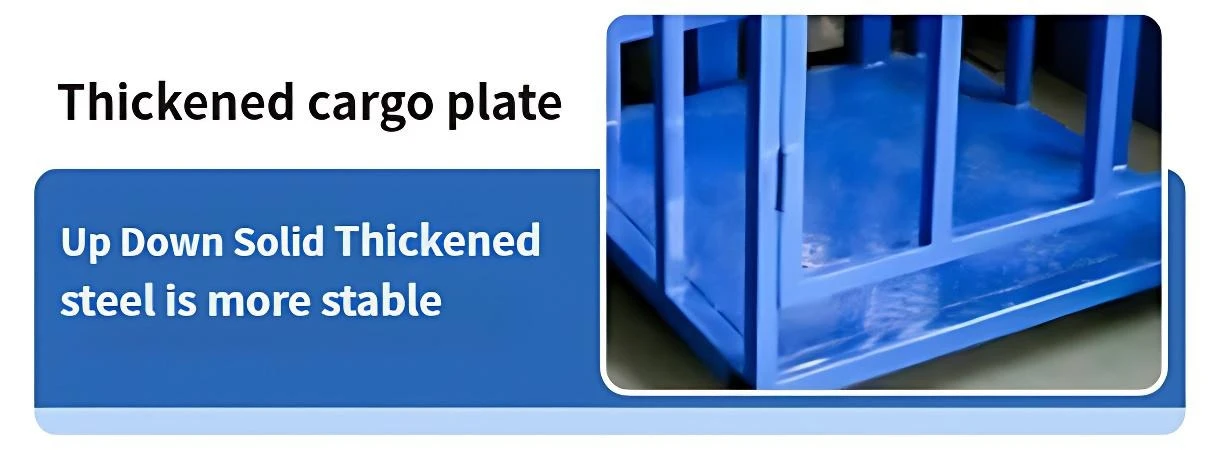

2. Strong load-bearing capacity: Thickened steel and reinforced chain structure design ensures a stable body and strong load-bearing capacity.

3. Flexible installation and configuration: The platform size and cut can be adjusted flexibly according to the space environment to adapt to different site requirements.

4. Smooth and efficient operation: The lifting process is stable and does not shake, making operation easy and labor-saving, improving handling efficiency.

5. Supports customization: Can be customized to match different floor heights and load-bearing requirements.

Product Details Display



Platform Height (m)	Max. Lifting Capacity (kg)	Platform size (m)	Motor power	Dead weight (kg)	Electrical control box	Oil cylinder
2	500	1.0*1.0	2.5kw	220	D class	63MM
2.5	500	1.0*1.0	2.5kw	250	D class	63MM
3	500	1.0*1.0	2.5kw	280	D class	63MM
3.5	500	1.0*1.0	2.5kw	300	D class	63MM
4	500	1.0*1.0	2.5kw	380	D class	63MM
4.5	500	1.0*1.0	2.5kw	400	D class	63MM
5	500	1.0*1.0	2.5kw	420	D class	63MM
5.5	500	1.0*1.0	3kw	450	C class	63MM
6	500	1.0*1.0	3kw	480	C class	63MM
7	500	1.0*1.0	3kw	500	C class	63MM
8	500	1.0*1.0	3kw	550	C class	63MM
9	500	1.0*1.0	3kw	600	C class	63MM
10	500	1.0*1.0	3kw	650	C class	63MM

Technical Notes:

1) Standard voltage: 220V 50HZ
2) Control: Control Panel
3) Safety protection: Upper and lower limiter, include falling protector
4) Packing: Wooden case (especially for export)

Q: Can I get your products with customized personalized service?

A: Yes, of course, we are manufacturer, and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you tell us what you need.

Q: How to guarantee the quality of your products?

A: 1.Strict detection during production.

2.Strict sampling inspection on products before shipment and intact product packaging ensured.

Q: What's your regular packing?

A: Usually we us wooden cases. If you have special requirements, we are glad to pack according to your instruction.
