Galvanized Steel Ladder Lift

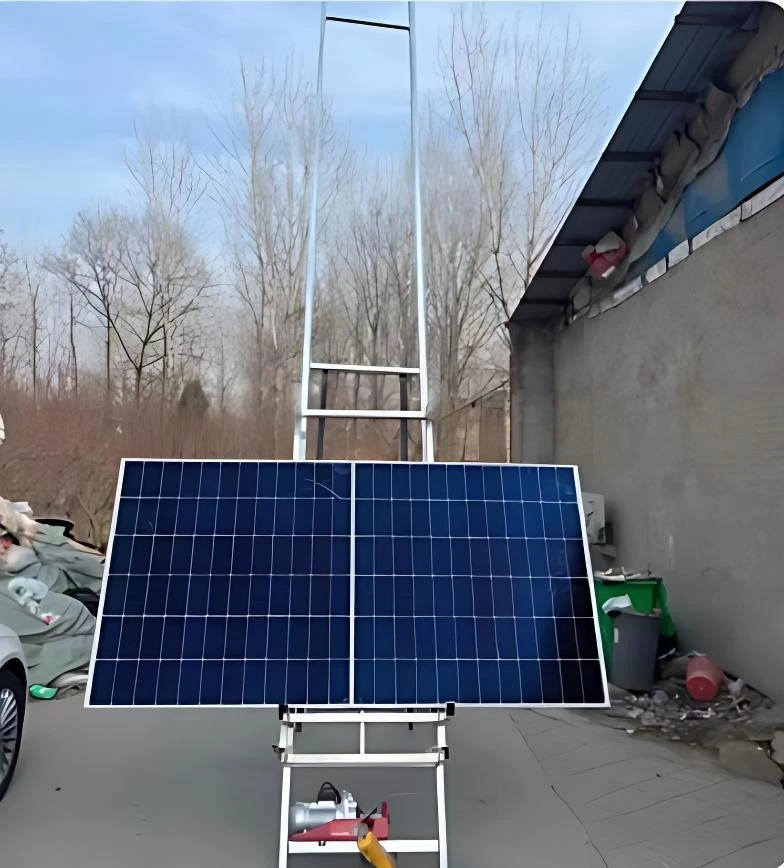

When installing rooftop solar panels, workers often face the challenge of lifting heavy photovoltaic panels and brackets from the ground up to steep, high roofs – that is exactly where the STONIMAGE Galvanized Steel Ladder Lift proves indispensable. Built with a rugged frame of 40×60mm galvanized steel pipe (1.6mm wall thickness), it withstands harsh outdoor conditions, resists rust and corrosion, and stays stable even after months of use on damp construction sites. Standard models carry up to 200kg (or 150kg for heavy‑duty versions), easily hoisting pallets of tiles, cement bags, large glass windows, waterproof rolls, or even paint barrels. With vertical heights ranging from 3 to 19 meters, its modular sections allow flexible combinations to suit multi‑story building facades, sunroom glazing, or narrow alleyways where crane access is impossible. The powerful copper‑wound motor runs on standard 220V household power, delivering a smooth lifting speed of 12–16 m/min – no special electrical setup required. On the job, workers simply load materials at ground level, press the control switch, and the lift sends the load safely to height in seconds, eliminating the risks of manual climbing and cutting project downtime dramatically. From new residential window installation to old building waterproofing and warehouse cargo handling, this ladder lift adapts to diverse tasks, and we also offer custom designs in structure, size, and functionality to match any unique site condition.
- Product Introduction
Products Description
- Multi-Purpose Material Lifting: Designed for lifting solar panels, glass panels, construction materials, roofing materials, furniture, and other cargo. Ideal for construction sites, solar installations, warehouses, and building maintenance projects.
- Three Durable Material Options: Available in Galvanized Steel, Channel Steel, and Aluminum Alloy. Customers can choose the most suitable material based on project requirements, working conditions, and budget.
- High Efficiency & Reliable Performance: With lifting heights from 3m to 19m and load capacities up to 200kg, the ladder lift helps reduce labor costs, improve work efficiency, and ensure smooth material transportation.
- CE Certified with 1-Year Warranty: Manufactured under strict quality control standards and certified with CE Certification. Each unit is fully tested before shipment and supported by a 1-Year Warranty for worry-free operation.
- Factory Direct Manufacturer: As a professional factory, we offer competitive factory-direct prices, fast production, OEM & ODM customization, and reliable after-sales support. Customized height, voltage, platform design, and material options are available.
Details Images

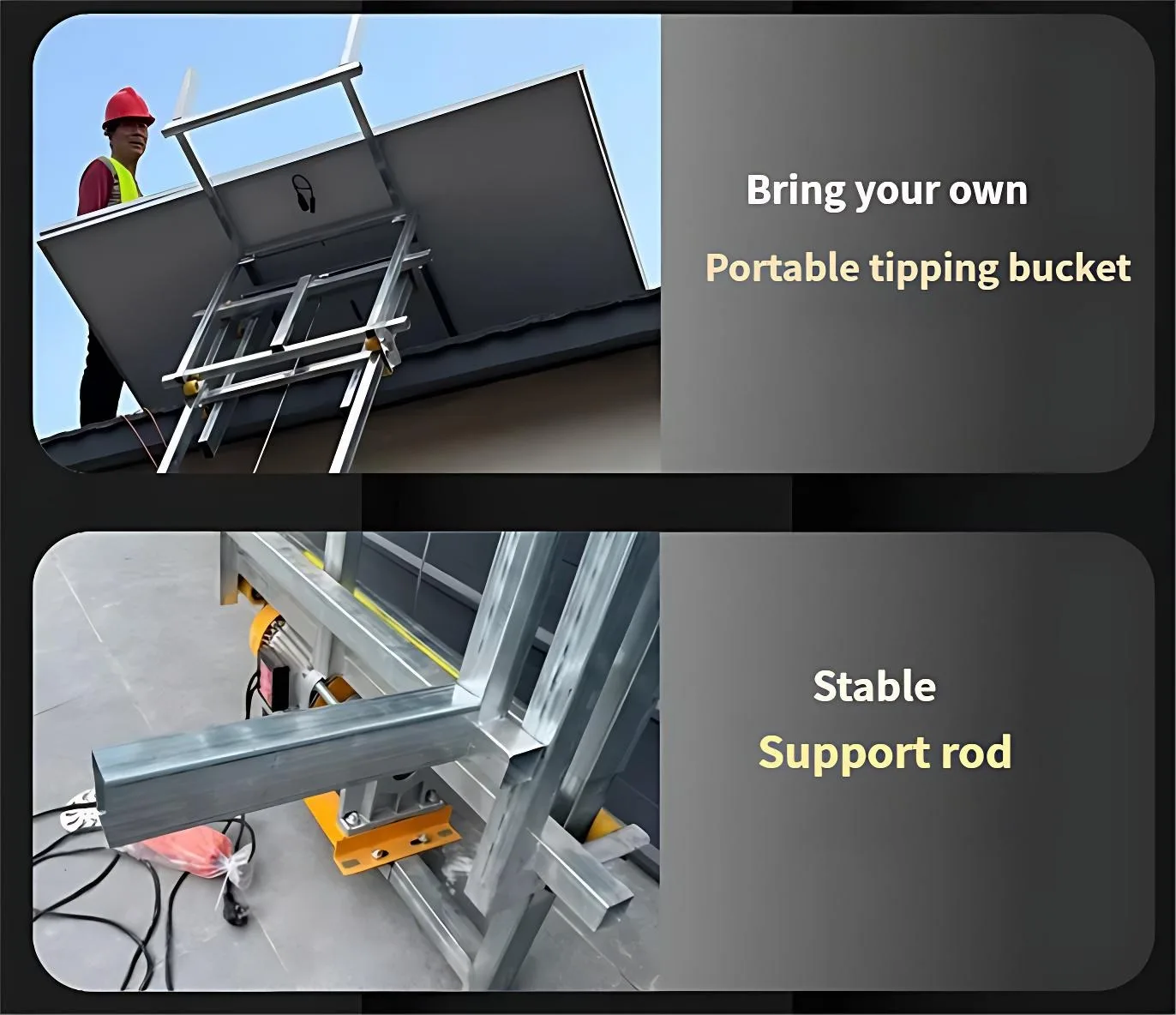

The STONIMAGE Galvanized Steel Ladder Lift comes with different portable tipping bucket that attaches quickly without tools, ideal for vertical transport of bulk materials like sand, cement, and broken tiles. At height, the bucket can be tilted manually or automatically for fast unloading, saving significant labor time – especially useful for rooftop jobs and floor‑to‑floor material transfer. Complementing it is a stable support rod, made of thickened steel with adjustable angle, which firmly braces against walls or floors to prevent swaying or shifting during lifting, ensuring rock‑solid safety even under full 200kg loads. Together, these two features make your high‑altitude work more efficient and secure.

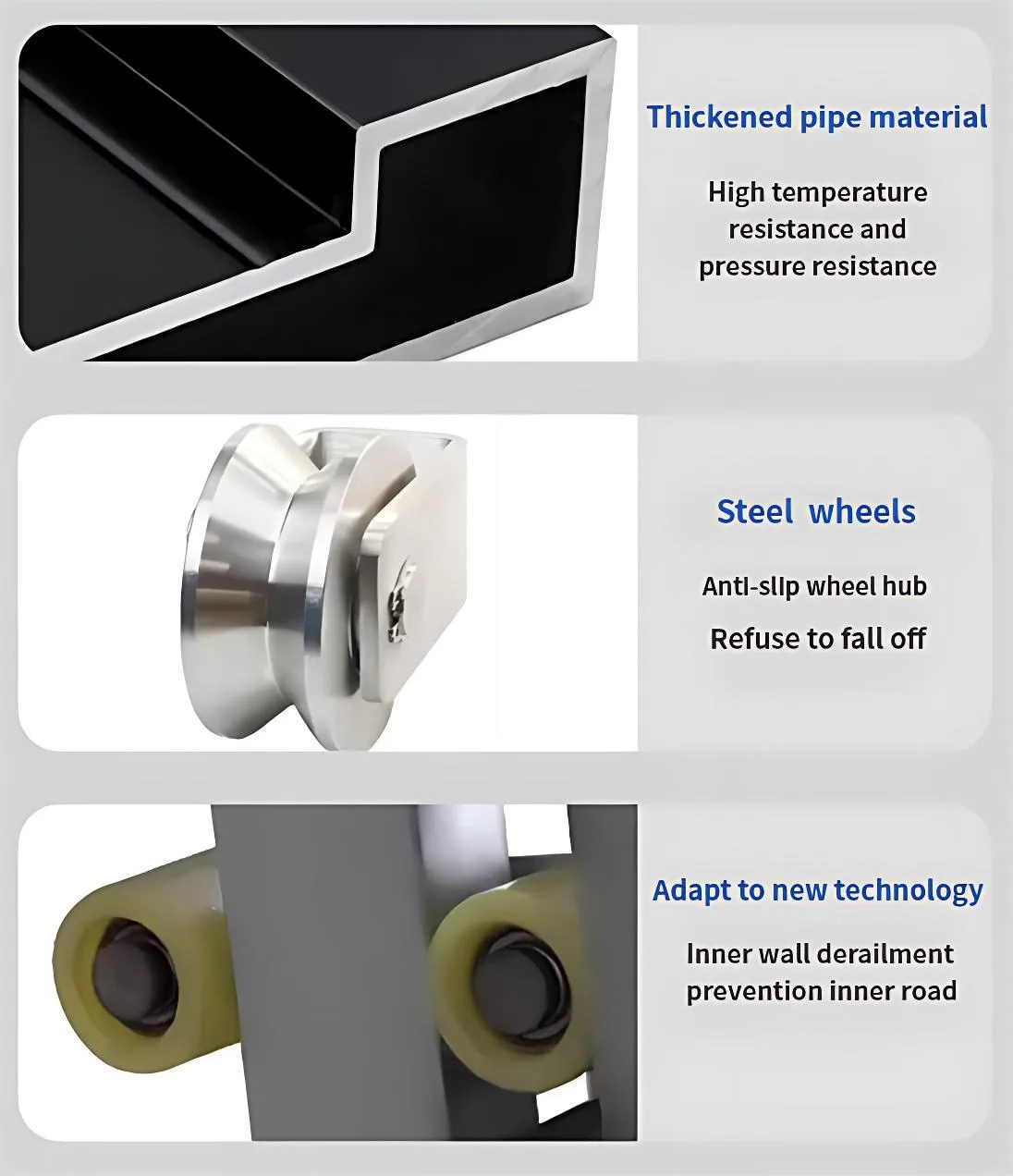

The STONIMAGE Galvanized Steel Ladder Lift excels in key components. Its frame uses thickened pipe material with high temperature and pressure resistance, ensuring no deformation even after long‑term heavy lifting under harsh sun or freezing conditions – far outlasting ordinary products. The lifting carriage features steel wheels with anti‑slip hubs that provide strong traction and smooth rolling on the track, effectively preventing skidding or wheel detachment during sudden stops or wet conditions. More critically, the inner wall of the track incorporates a derailment‑prevention inner guide that precisely matches the wheels, forcing them to stay on track even under unexpected sway or unbalanced loads – completely eliminating derailment risks. These thoughtful details make the ladder lift adaptable to modern construction site requirements, delivering stable and reliable performance in every lift – whether on high‑rise facades, sloped roofs, or narrow alleyways.
Product Paramenters
|
Model
|
Track length(m)
|
Max.vertical height(m)
|
Max.Load Capacity(kg)
|
Motor model/power
|
Standard section length(m)
|
|
EL400
|
4
|
3~4
|
200
|
PA800,1300W
|
0.5+3.5
|
|
EL500
|
5
|
4~4.5
|
0.5+3.5+1
|
||
|
EL600
|
6
|
5~5.5
|
0.5+3.5+2
|
||
|
EL700
|
7
|
6~6.5
|
0.5+3.5+3
|
||
|
EL800
|
8
|
7~7.5
|
0.5+3+3+1.5
|
||
|
EL900
|
9
|
8~8.5
|
0.5+3+3+2.5
|
||
|
EL1000
|
10
|
8.5~9.5
|
0.5+3+3+2+1.5
|
||
|
EL1100
|
11
|
9~10.5
|
0.5+3+3+2+2.5
|
||
|
EL1200
|
12
|
10~11.5
|
0.5+3*3pc+2.5
|
||
|
EL1300
|
13
|
11~12.5
|
0.5+3*3pc+2+1.5
|
||
|
EL1400
|
14
|
12~13.5
|
0.5+3*4pc+1.5
|
||
|
EL1500
|
15
|
13~14.5
|
150
|
0.5+3*4pc+2.5
|
|
|
EL1600
|
16
|
14~15
|
PA1000,1600W
|
0.5+3*4pc+2+1.5
|
|
|
EL1700
|
17
|
15~16
|
0.5+3*5pc+1.5
|
||
|
EL1800
|
18
|
16~17
|
0.5+3*5+2.5
|
||
|
EL1900
|
19
|
17~18
|
0.5+3*5+2+1.5
|
||
|
EL2000
|
20
|
18~19
|
PA1200,2000W
|
0.5+3*6+1.5
|
|
|
Note: the customized design / fabrication are acceptable in structure, dimension and functions.
|
|||||

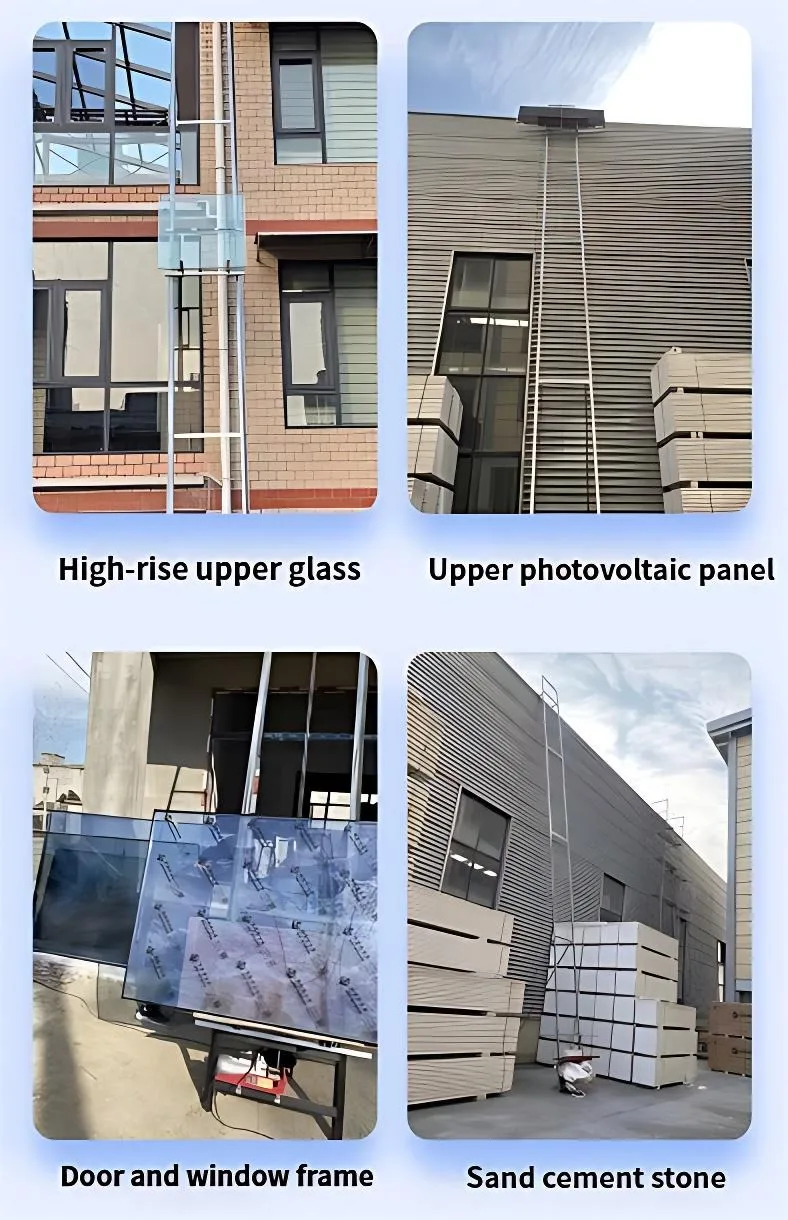

Product Use Cases

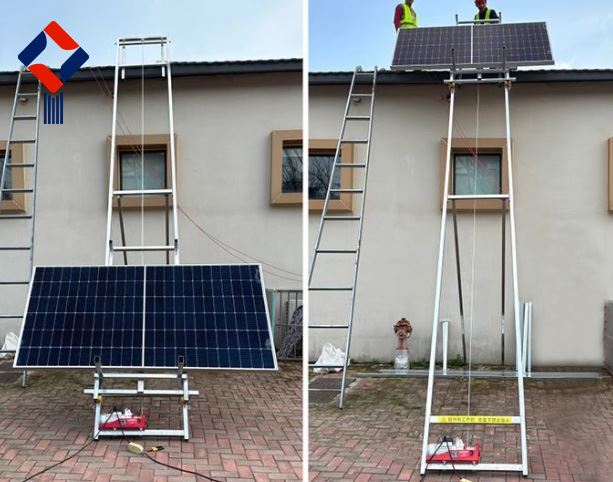

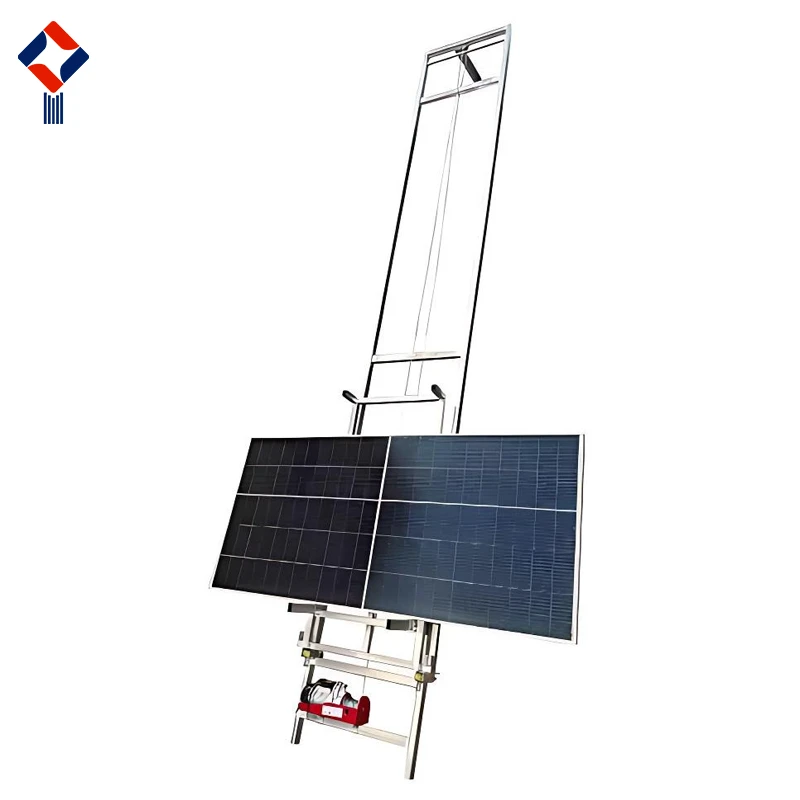

- Rooftop solar panel installation – Lift heavy photovoltaic panels and mounting brackets up to sloped roofs, max load 200kg, eliminates manual carrying and boosts installation speed.

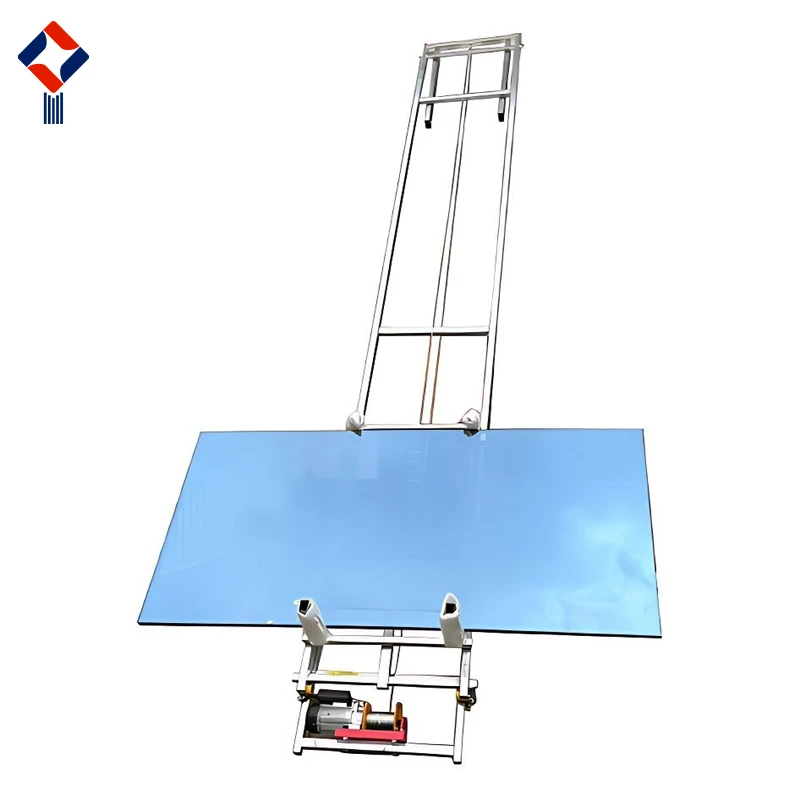

- High‑rise glass curtain wall construction – Smoothly transport large glass windows, doors, and sunroom frames to upper floors, reducing breakage risks during handling.
- Building material transfer – Quickly hoist cement bags, sand, tiles, paint drums, and other bulk or bagged materials to different levels – saves time and labor.
- Roof waterproofing membrane laying – Easily deliver waterproof rolls, coatings, and heavy reels to roof tops, replacing manpower and ensuring worker safety.
- Cargo lifting in narrow spaces – Ideal for alleys, balconies, and indoor mezzanines where cranes can't reach – flexible and compact for short vertical transport.
FAQ
Q: What materials can the ladder lift transport?
A: Our ladder lift is ideal for transporting solar panels, glass panels, roofing materials, furniture, bricks, tiles, and various construction materials safely and efficiently.
Q: What material options are available?
A: We offer three material options: Galvanized Steel, Channel Steel, and Aluminum Alloy. Customers can choose the most suitable material according to their working environment and budget.
Q: What is the maximum lifting height and load capacity?
A: The lifting height ranges from 3m to 19m, with a maximum load capacity of 200kg, meeting the requirements of most construction and installation projects.
Q: Is the ladder lift CE certified?
A: Yes, all our ladder lifts are CE certified and undergo strict quality inspections before shipment to ensure safety and reliable performance.
Q: Why choose your company?
A: We are a professional manufacturer offering factory-direct prices, 1-year warranty, OEM/ODM customization, fast delivery, and comprehensive after-sales support for customers worldwide.
