Electric Scaffolding Lift Platform

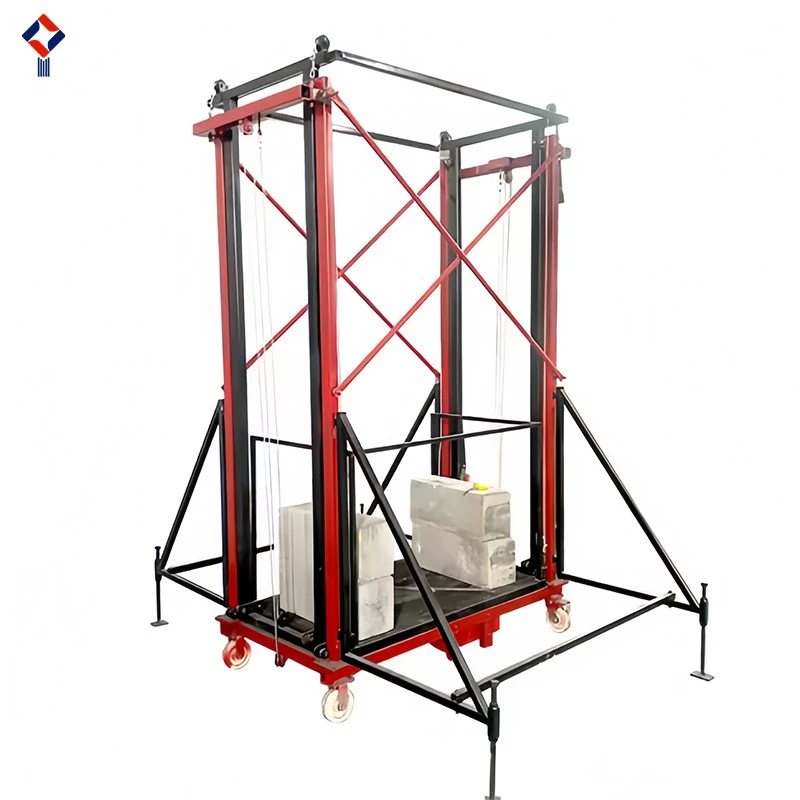

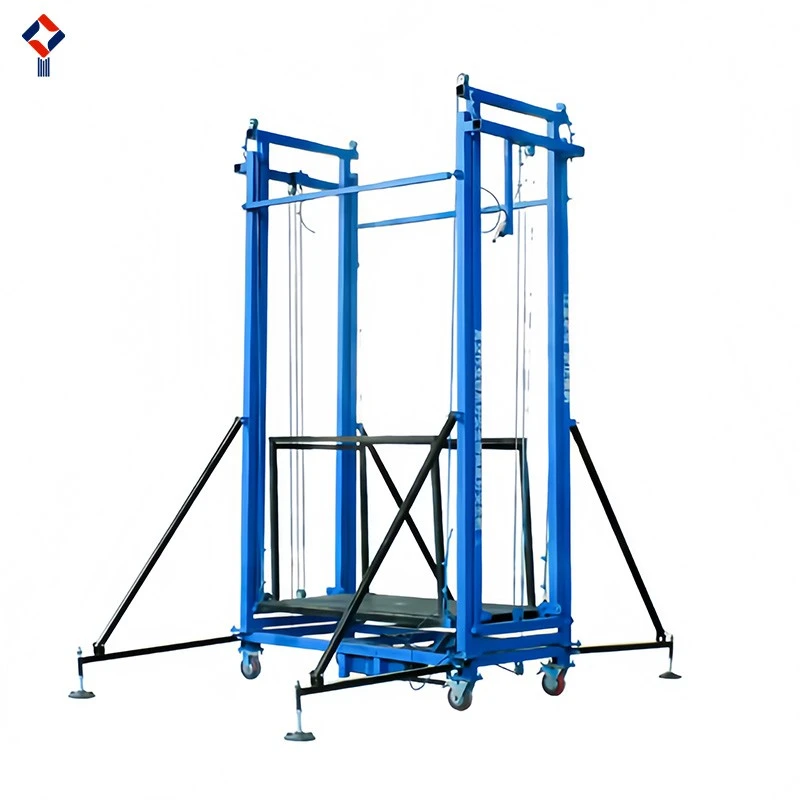

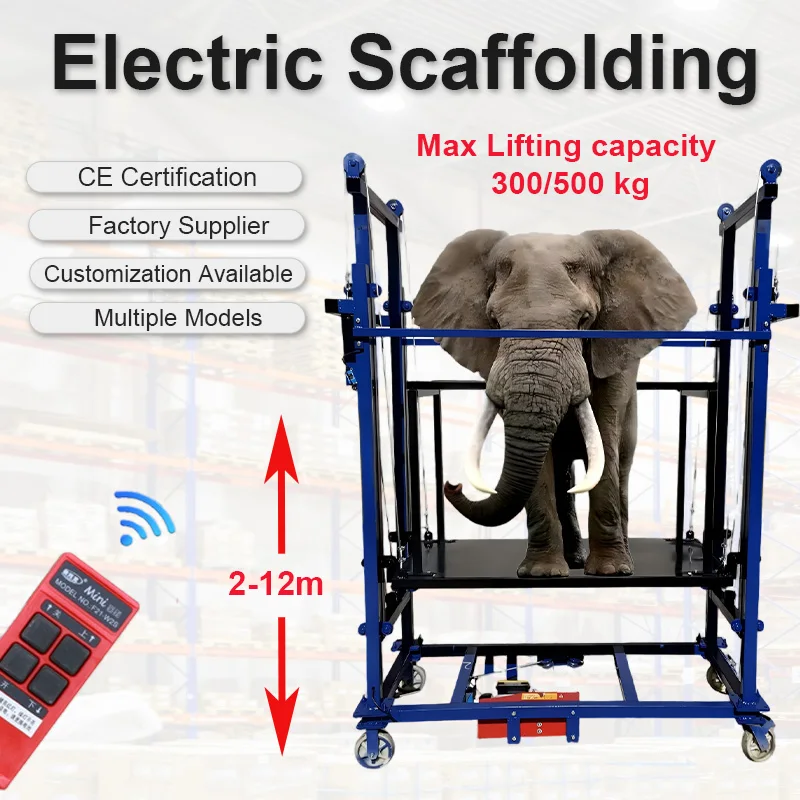

STONIMAGE Electric Scaffolding is a heavy‑duty mobile work platform built with robust 5×5cm or 6×6cm steel pipe (2mm thickness), supporting 300kg or 500kg loads and reaching working heights from 2 to 12 meters. Driven by a reliable PA800/PA1000 motor, it provides smooth, controlled lifting with upper/lower limit switches and outriggers for heights above 3 meters – ensuring maximum safety for workers and materials. Four 6‑inch castors (two directional, two universal with brakes) make it easy to reposition across job sites, while the modular platform with guardrails allows fast assembly and disassembly without special tools. Ideal for painting, exterior plastering, glass curtain installation, warehouse maintenance, and overhead repairs – this construction lift saves setup time, reduces labor costs, and adapts to diverse applications. We also offer customizable heights and extensions, backed by our fast after‑sales service and unconditional parts supply.
- Product Introduction
Products Description
- Adjustable working height from 2m to 12m: Suitable for factory maintenance (pipe/lighting repairs), indoor renovation (ceiling/drywall/painting/glass installation), and aerial work (facade cleaning/sign installation). Multiple height options cover most indoor and outdoor project requirements.
- Heavy-duty design with 300kg or 500kg load capacity: High-strength steel frame (5/6cm pipes, 2mm wall thickness) and reinforced anti-slip platform safely carry workers, tools, and materials in workshops, interiors, and construction sites, ensuring stable lifting and higher efficiency.
- Electric lifting system with remote control: Wireless remote and smooth PA800/PA1000 motor with overload protection allow one-person operation. Lockable casters enable easy movement and positioning in narrow factory aisles, tight indoor rooms, or outdoor job sites.

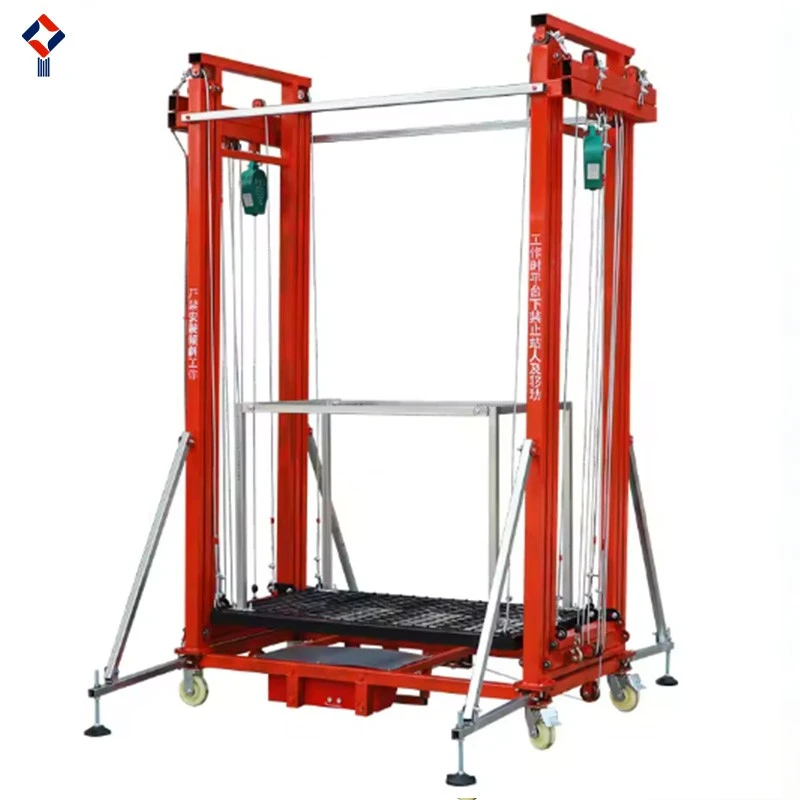

- CE certified quality and reliable safety protection: Equipped with guardrails, outriggers (for heights over 3m), mechanical anti-fall locking catch, and upper/lower limit switches. Ensures safe high-altitude work for exterior maintenance, window cleaning, and overhead installations.
- Factory direct supply, OEM service, and 1-year warranty: Over 10 years of manufacturing experience, OEM/ODM customization, 100% load test before shipment, 1-year warranty, and lifetime technical support. Your long-term partner for maintenance, renovation, and construction projects.
Detail Images

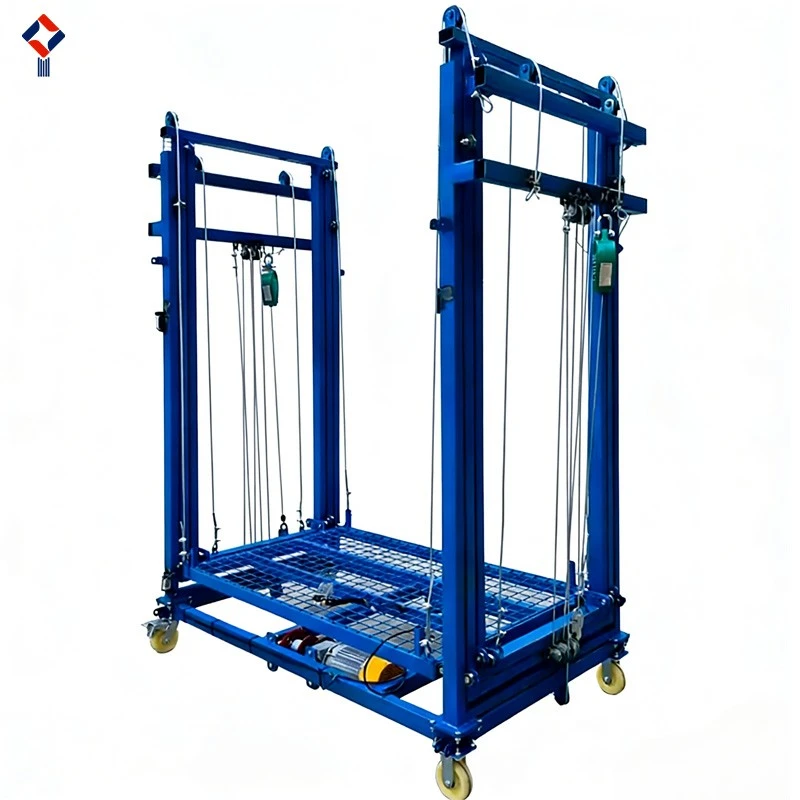

- Thickened steel frame – High‑strength steel construction resists warping under heavy loads, ensuring long service life.

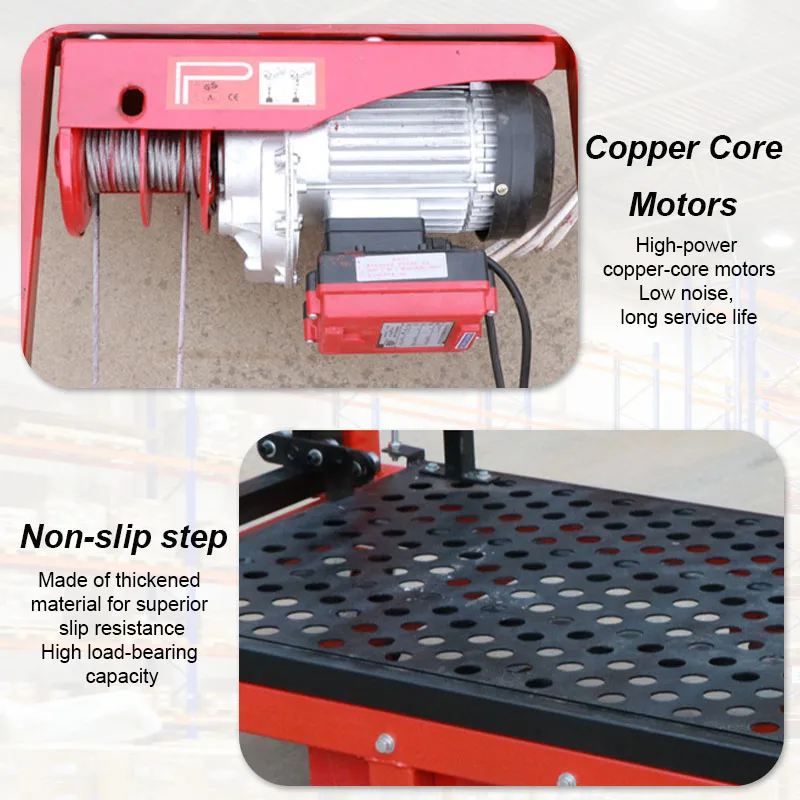

- High‑power copper‑core motor – Pure copper windings deliver low noise, long lifespan, and stable lifting even with frequent starts and stops.
- Non‑slip thickened platform – Slip‑resistant surface with heavy‑duty material keeps workers steady even in rain or grease; high load‑bearing capacity supports multiple workers and tools.

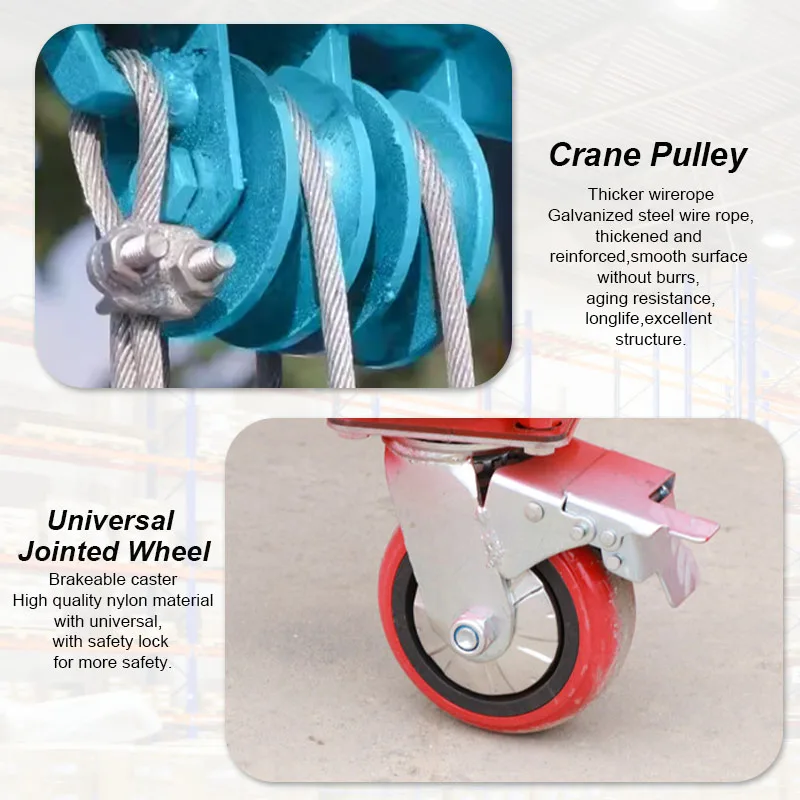

- Thickened galvanized wire rope – Smooth, burr‑free, aging‑resistant, and wear‑proof, working with pulleys for smooth, jam‑free lifting.
- Universal castors with brakes – Premium nylon material, 360° swivel, safety lock secures machine firmly in place during operation.

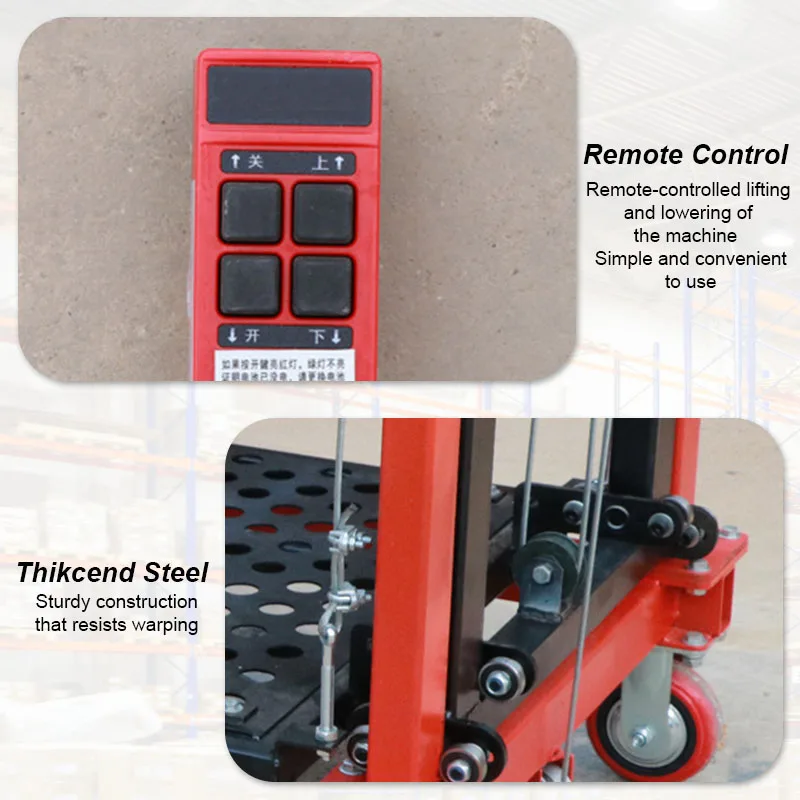

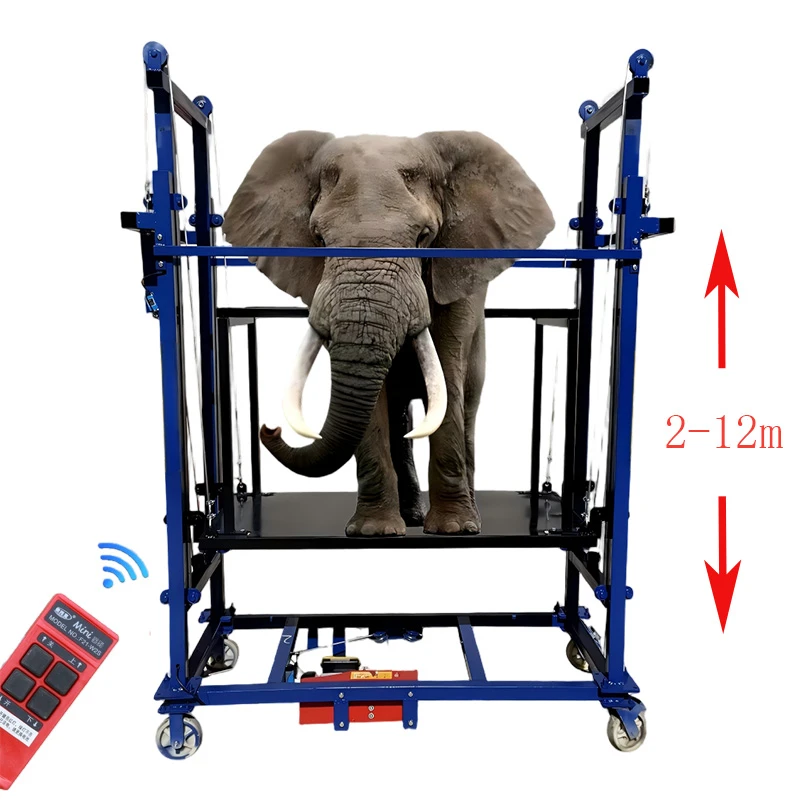

- Remote control system – Wireless remote for raising/lowering from a safe distance – simple, convenient, and safer.

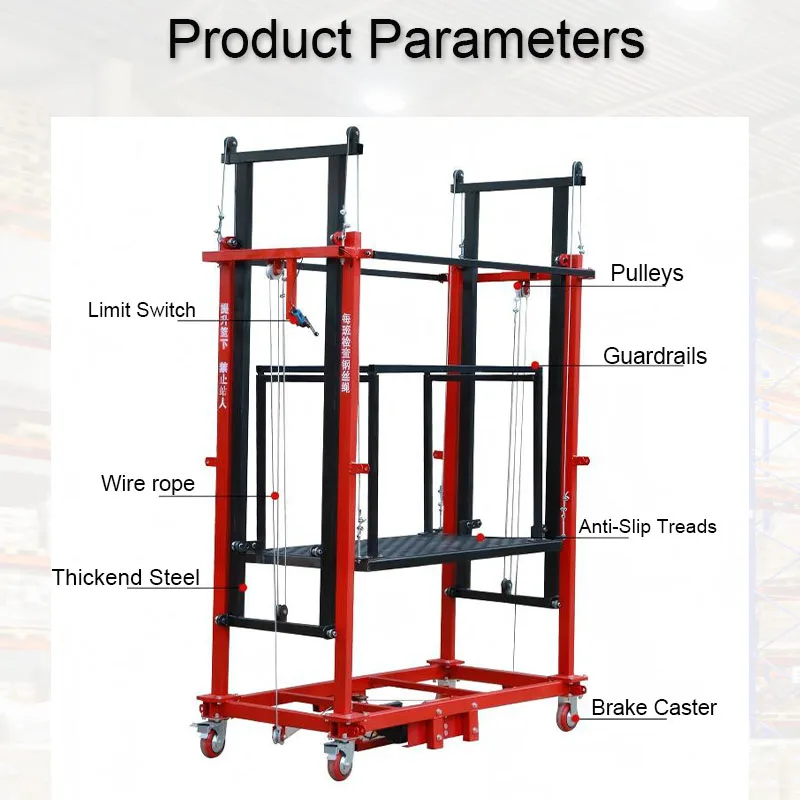

Product Parameters
| Platform Height (m) | Capacity (kg) | Platform Size (m) | Outrigger & Guardrail | Steel Pipe |
|---|---|---|---|---|
| 2, 2.5 | 300 / 500 | 1.3 × 0.68 | No | 5×5cm, 2mm wall |
| 3, 3.5 | 300 / 500 | 1.3 × 0.68 | Yes | 5×5cm, 2mm wall |
| 4, 4.5, 5, 5.5 | 300 / 500 | 1.4 × 0.78 | Yes | 5×5cm, 2mm wall |
| 6, 7, 8, 10 | 500 | 1.58 × 0.98 | Yes | 6×6cm, 2mm wall |
| 12 | 500 | 1.78 × 1.28 | Yes | 6×6cm, 2mm wall |
- Low‑height type (2m / 2.5m) – No outriggers, small platform (1.3×0.68m). Best for indoor ceiling work, light fixture replacement, and other low‑level tasks.
- Standard type (3m – 5.5m) – Equipped with outriggers and guardrails, medium platform (1.3–1.4×0.68–0.78m), load options of 300kg or 500kg. Suited for exterior plastering, glass installation, and typical high‑access jobs.
- High‑reach type (6m – 12m) – 500kg capacity only, larger platforms (1.58–1.78×0.98–1.28m), thicker 6×6cm steel pipe. Designed for big venues, warehouse racking, and tall structural maintenance.
Applications
- Exterior building construction – Ideal for high‑rise plastering, tiling, and painting – electric lifting to any height replaces traditional pipe scaffolding, saving setup and teardown time.
- Glass curtain wall installation – Smoothly lifts workers and large glass panels to designated floors; remote control allows fine height adjustment for precise positioning.
- Indoor ceiling renovation – Perfect for suspended ceiling work and lighting installation in malls, exhibition halls, and factories – non‑slip platform ensures worker safety at height.
- Warehouse shelving maintenance – Quickly raises workers to high racks for inventory checks and equipment repairs – 360° castors enable easy solo operation and mobility.
- Stadium and station facility upkeep – Used for ceiling cleaning, lighting replacement, and pipeline inspection in large public venues – 500kg capacity supports multiple workers with tools simultaneously.
